2018-01-05 - Activation Buttons

Category Randall

Issue: short push on activation buttons are not detected fast enough by the AIU01 polling.

Solution: use a basic RC to make the signal seem longer.

Experiment at home:

  • Use a 1000 µF between GND and the input.
  • Use a 110 Ω R in serie from input to button (to avoid shorting the capacitor).
  • This results in a hold time of about 5-7 seconds when fully charged.
  • When powering up, this also activates the input while the capacitor charges.

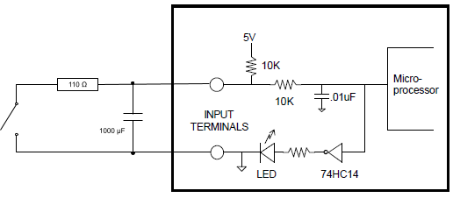

Quick drawing:
