The Randall Museum in San Francisco hosts a large HO-scale model model railroad. Created by the Golden Gate Model Railroad Club starting in 1961, the layout was donated to the Museum in 2015. Since then I have started automatizing trains running on the layout. I am also the model railroad maintainer. This blog describes various updates on the Randall project and I maintain a separate blog for all my electronics not directly related to Randall.

2016-12-28 - Relay for Fulgurex T330

Category Randall

I ordered this: http://amzn.to/2i8bOAQ

Relay: TRS-12V-SA-L20

Datasheet: looks similar to this http://www.micrus.ru/pdf/trs.pdf

On the bottom there's a pinout drawn that is similar to the pinout from the datasheet:

  ⇐ This is the BOTTOM view. Invert vertically from top.

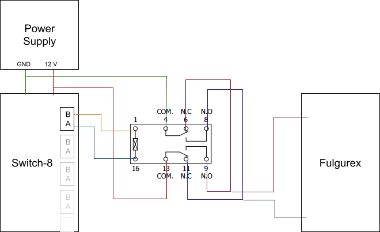

How to wire it for the layout:
