2024-12-16 - Ambiance

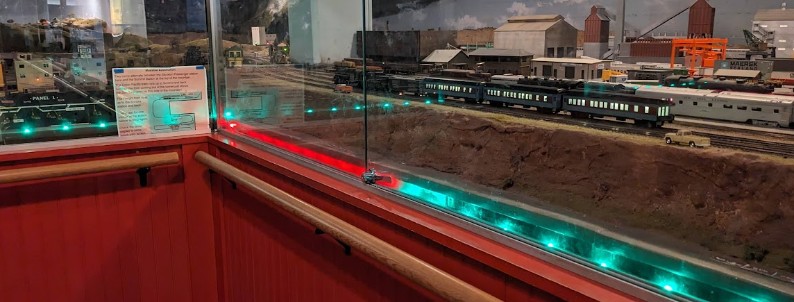

Category RandallI’ve just installed “Ambiance” on the layout, a LED fairy light string which is controlled by the train automation computer:

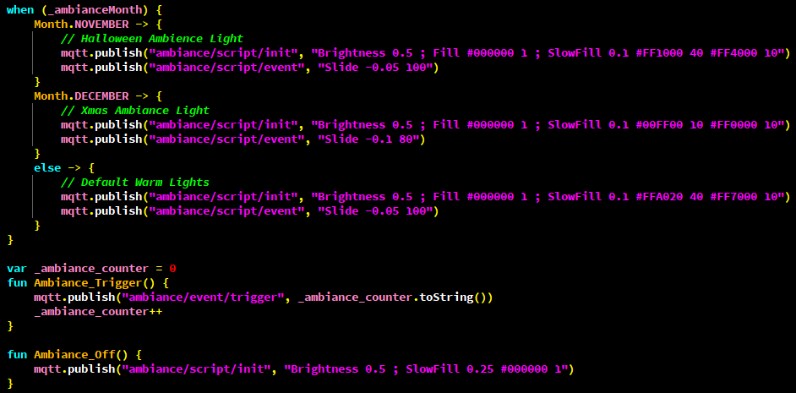

I’ve been working on that little project for a while. It is built around an ESP32 embedded controller running a custom software. The automation computer can send configurable light patterns and animation to the controller, which in turns controls the lights.
The lights will vary depending on the season. For example right now I have a simple green/red pattern, whilst around Halloween I will have a yellow/orange pattern:
On top of that, there’s an animation that is triggered when one of the automated trains departs the station.
Here’s the current effect in action:
The ESP32 “Ambiance” software can be found here: https://bitbucket.org/model-railroad/ambiance
